The S5735-L8P4S-A-V2 is a next-generation gigabit Ethernet switch from Huawei CloudEngine S5700 Series. Designed to support enterprise networks with high performance, PoE capabilities, and enhanced reliability, this switch provides flexible deployments in campuses, branches, and small to medium-sized businesses. Below is an in-depth overview of its specifications, features, and use cases.

Overview of S5735-L8P4S-A-V2

The Huawei S5735-L8P4S-A-V2 is a compact and powerful gigabit Ethernet switch with 8 electrical ports and 4 optical SFP ports. It supports PoE+ (Power over Ethernet Plus) to power connected devices such as IP cameras, access points, and IP phones. This model is powered by AC and is well-suited for converged network environments requiring both data and power delivery.

Key Technical Specifications

Here are the detailed specifications of the S5735-L8P4S-A-V2:

▪ Model: S5735-L8P4S-A-V2
▪ Part Number: 98011986
▪ First Supported Version: V600R022C01
▪ Ports: 8 x 10/100/1000BASE-T (PoE+) electrical ports, 4 x 1000BASE-X SFP ports
▪ Console Port: 1 x Console for management
▪ Buttons: MODE button, PNP (Plug-and-Play) reset button
▪ Power Supply: Built-in AC power socket
▪ Grounding: Dedicated grounding screw

Physical Components

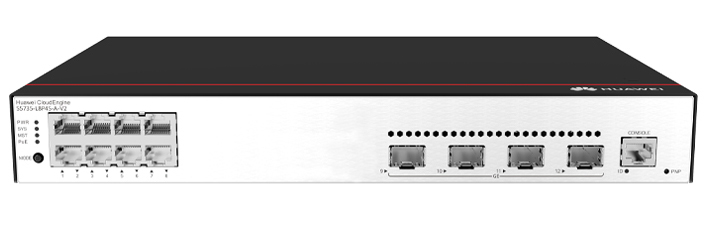

Front Panel Features

The front panel integrates essential networking and management interfaces:

▪ Eight 10/100/1000BASE-T PoE+ ports: Support both data transmission and PoE power supply.
▪ Four 1000BASE-X SFP ports: Allow optical fiber connectivity for uplinks or long-distance networking.
▪ One console port: Enables device configuration and management.
▪ MODE button: For switching indicator modes.
▪ PNP button: Used for resetting or restoring factory defaults.

Rear Panel Features

▪ AC socket: Connects to AC power supply.
▪ Ground screw: Ensures proper grounding for safety and device protection.
▪ Locking strap jack: Allows securing the AC power cable.

Performance Capabilities

The S5735-L8P4S-A-V2 delivers high-performance switching capabilities, making it suitable for demanding enterprise applications:

▪ Gigabit Ethernet Access: All electrical and optical ports support gigabit speeds.
▪ PoE+ Support: Provides up to 30W per port to power devices.
▪ Advanced Switching: Supports VLANs, QoS, and security policies for optimized traffic handling.

Power over Ethernet (PoE+) Support

This model is designed for seamless integration of power and data delivery:

▪ PoE+ Standard: IEEE 802.3at compliant, delivering up to 30W per port.
▪ Total PoE Budget: Adequate to power multiple access points or IP phones simultaneously.
▪ Flexible Deployment: Eliminates the need for separate power sources for edge devices.

Use Cases and Deployment Scenarios

Small and Medium Businesses

Perfect for SMBs requiring compact switches that deliver both connectivity and power for office devices.

Campus Networks

Ideal for classrooms and labs where Wi-Fi access points and IP surveillance systems need integrated power and connectivity.

Branch Offices

Provides reliable networking in distributed office environments with easy deployment and remote management.

Management and Configuration

The switch provides versatile management options to meet enterprise requirements:

▪ Console Management: CLI-based configuration through the console port.
▪ Web Interface: Intuitive web-based GUI for simplified management.
▪ SNMP and Remote Access: Supports SNMPv1/v2/v3 for integration into network monitoring systems.

Reliability and Security Features

The S5735-L8P4S-A-V2 integrates several mechanisms to ensure high reliability:

▪ Device Reset and Recovery: PNP button enables quick recovery in case of misconfiguration.
▪ Secure Networking: Includes port security, ACLs, and storm control.
▪ Grounding Mechanism: Enhances safety by preventing electrical surges.

Comparison with Other Models

The S5735-L8P4S-A-V2 stands out from other S5735-L models due to its balance of compact size and powerful PoE capabilities. While larger models offer more ports, this switch is optimized for small deployments that still demand enterprise-grade reliability.

Advantages of S5735-L8P4S-A-V2

▪ Compact Design: Fits into space-limited environments.
▪ High PoE Capability: Supports multiple powered devices.
▪ Flexible Uplinks: Fiber ports extend network reach.
▪ Ease of Use: Plug-and-play functionality with robust configuration options.

limitaciones

▪ Port Density: Limited to 8 electrical and 4 optical ports.
▪ No Modular Expansion: Unlike higher-end models, expansion is restricted.
▪ AC Only Power: Lacks support for DC power modules.

Future-Ready Networking

The S5735-L8P4S-A-V2 is designed to support digital transformation in businesses by providing gigabit speeds, PoE+ functionality, and security features essential for modern IP-based networks. It serves as a reliable building block for enterprise network infrastructures.

Frequently Asked Questions (FAQs)

1. What type of devices can be powered by the S5735-L8P4S-A-V2?

It can power PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points.

2. How many ports support PoE+?

All 8 electrical 10/100/1000BASE-T ports support PoE+.

3. Does it support stacking?

No, this model does not support stacking. It is intended for standalone deployments.

4. What is the maximum PoE power per port?

Each PoE+ port supports up to 30W of power output.

5. What is the difference between S5735-L8P4S-A-V2 and S5735-L8T4S-A-V2?

The "P" in the model name indicates PoE+ support, which is absent in the "T" version.

6. Can it be remotely managed?

Yes, it supports SNMP, web management, and remote CLI access for efficient network administration.

conclusión

The S5735-L8P4S-A-V2 is a highly reliable, compact, and feature-rich switch that delivers gigabit performance and PoE+ support for enterprise networking needs. It is ideal for SMBs, branch offices, and campus networks requiring integrated data and power solutions. With advanced security, management, and reliability features, this switch is a valuable asset for building future-ready networks.
