modelo

FTL4C1QE1C

descripción

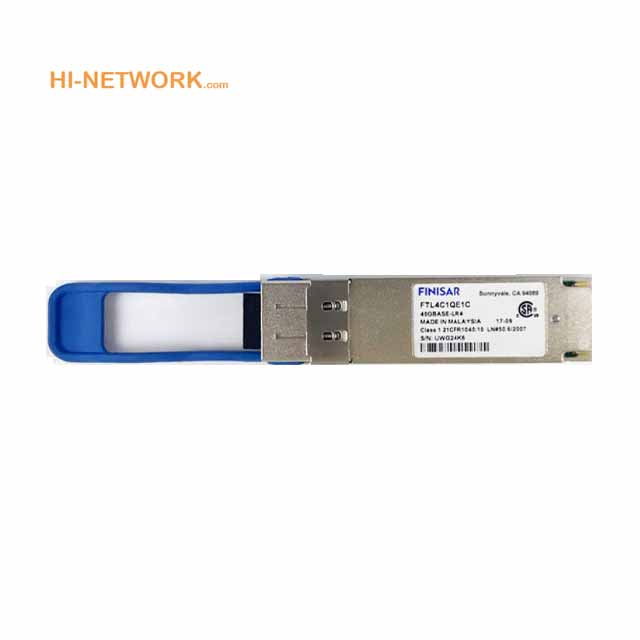

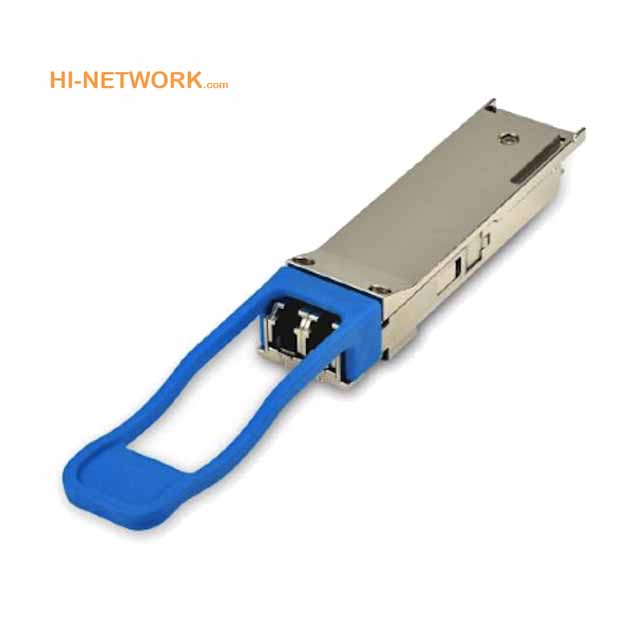

FTL4C1QE1C Finisar 40GBASE-LR4 40Gbps QSFP+ Fiber Transceiver 40 G 10 Km Optic Fiber

Tipo de medio:

Single-Mode Fiber (SMF)

Longitud de onda TX:

1310 nm.

Tipo de transcept:

QSFP

RX Wavelength:

1310 nm.

Minimum Optical Budget:

9.7 dB

Distancia máxima:

10km

Tasa de datos compatible:

39.81 – 44.8 Gbps

Aplicaciones soportadas:

40G Ethernet (41.25Gbps), STM-256 (39.81 Gbps), OTU3 (43.01Gbps), OTU3e2 (44.58Gbps)

DDM/DOM:

apoyado

Rango de temperatura:

Estándar 0 − -70°C

Conectores:

Double LC

Tx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331))

Rx Wavelength Bandwidth:

4 WDM Seperated 1310nm Lanes (13nm (1271, 1291, 1311, 1331))

Minimum Transmitting Potencia:

Each Lane -4 dB

Maximum Transmitting Power:

Each Lane 2.3 dB

Receiver Sensitivity:

Each Lane -13.7 dBm

Receiver Overload:

Each Lane 2.3 dBm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+ 3,3v fuente de alimentación única

Chipset:

MAXIM, MINDSPEED, SEMTECH, UX

Cumplimiento:

802.3ba 40GBASE-LR4, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8438i, QSFP+ MSA, RoHS, SFF-8436
