Description

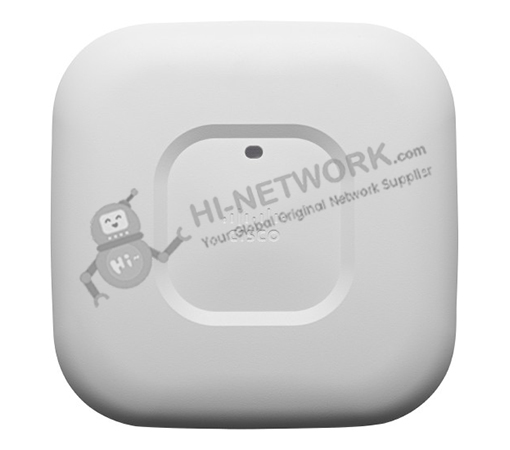

802.11ac CAP w/CleanAir; 3x4:3SS; Int Ant; K Reg Domain

Banda de frecuencia y canales de operación de 20 MHz

K (dominio regulatorio K):

− 2.412 a 2.472 GHz; 13 canales

− 5.180 a 5.320 GHz; 8 canales

− 5.500 a 5.620 GHz; 7 canales

5,745 a 5,805 GHz; 4 canales

Software Software

Cisco Unified Wireless Network Software Release 7.6MR2 or later

Controladores de LAN inalámbrica compatibles

● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

* Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

802.11n versión 2.0 (y relacionadas) capacidades

● 3x4 MIMO with three spatial streams

Combinación (MRC)

802.11n y 802.11a/g beamforming

Canales ≥ 20 y 40-MHz

Velocidades de datos de hasta 450 Mbps (40 MHz con 5 GHz)

Agregación de paquetes: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

Selección de frecuencia dinámica (DFS)

Soporte de diversidad de desplazamiento cíclic(CSD)

802.11ac Wave 1 capabilities (en inglés)

● 3x4 MIMO with three spatial streams

MRC

802.11ac beamforming

Canales ≥ 20, 40 y 80 MHz

Velocidades de datos de hasta 1.3 Gbps (80 MHz en 5 GHz)

Agregación de paquetes: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

Soporte de CSD

Antena integrada

● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°

Antena externa (sold por separado)

● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

● Cisco offers the industry's más amplia selección de antenas, ofreciendo una cobertura óptima para una variedad de escenarios de despliegue

Interfaces

● 2x10/100/1000BASE-T autosensing (RJ-45)

● Management console port (RJ-45)

indicadores

● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensiones (W x L x H)

● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm)

peso

● 2.2 lb (1.0 kg)

Medio ambiente

● Nonoperating (storage) temperature: −22° to 158°F (-30° to 70°C)

Prueba de altitud: 25 ● C, 15.000 pies.

● temperatura de funcionamiento: 32° a 104°F (0° a 40°C)

● Operating humidity: 10% to 90% percent (noncondensing)

Prueba de altitud operativa: 40 ● C, 9843 pies.

Memoria de sistema

● 512 MB DRAM

● 64 MB flash

Requisitos de potencia de entrada

● AP2700: 44 to 57 VDC

● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Toma de potencia

● AP2700: 15W

Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable.

Opciones de alimentación

● 802.3at PoE+

● Enhanced PoE

● Cisco AP2700 power injectors (AIR-PWRINJ4=)

● Cisco AP2700 local power supply (AIR-PWR-C= or AIR-PWR-D=)

Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up under PoE.

Garantía de garantía

Garantía limitada de por vida del hardware
